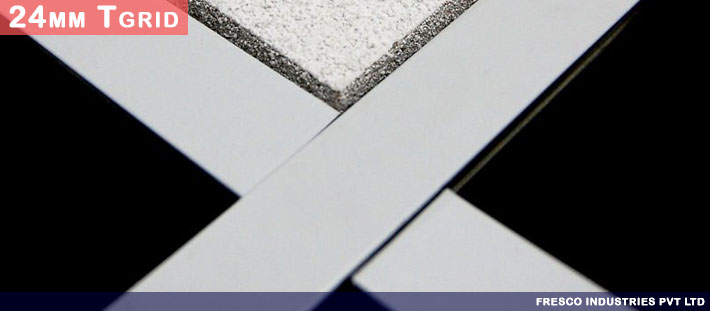

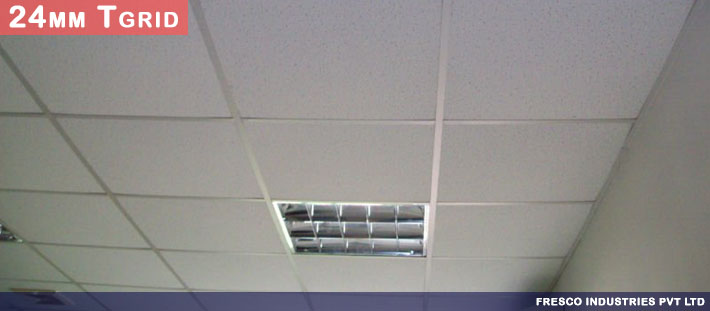

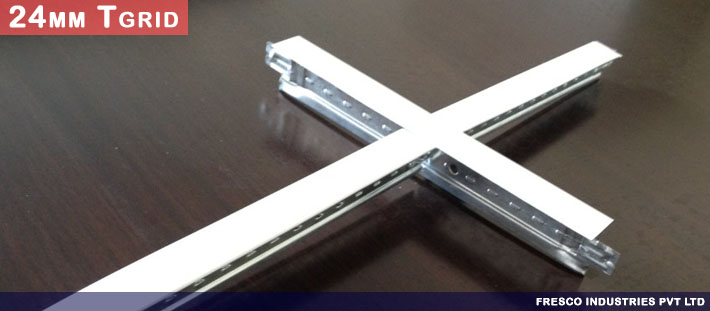

T-Grid System


Description :


Improved, easier to install Works with any tiles of size 600 x 6000mm Appropriate corrosion resistance for interior environments The industry standard of compatibility: acoustical tile, light fixtures and air diffusers Seismic and fire resistive designs Demountable designs Unique designs in offices, hotels, retail spaces, schools, entertainment facilities, controlled environment facilities, semiconductor, pharmaceutical, aerospace, clean manufacturing areas, healthcare, food processing, and precision instrument assembly rooms Eco-friendly


Application :


  • Fast, tight installations
  • Modification can be easily done after installation
  • Demountable systems allow for quick access to large work areas above the ceiling
  • Global compatibility and availability
  • Cost effective.
  • Sustainable: 100% post consumer recycled content, 100% locally recyclable, global/regional manufacture
  • Easy & time saving installation

Technical Specification :


  • Material High quality hot dipped Galvanized Iron Sheet
  • Coating 120gm/sq meter zinc coating
  • Capping Pre coated white GI sheet
  • Wall angle Thick GI precoated white (polyester coating) on one side black color /premier on other side.

Other Technical Details:


Heavy Duty T-Grid

  • Main Runner Size: 38mm x 24mm x 3600mm
  • Cross Tee Size:
  • Wall Angle Size: 22mm x 20mm x 3050mm

Medium Duty T-Grid

  • Main Runner Size: 32mm x 24mm x 3600mm
  • Cross Tee Size: 27mm x 24mm x 1200mm & 27mm x 24mm x 600mm
  • Wall Angle Size: 22mm x 20mm x 3050mm

24MM
