Description :

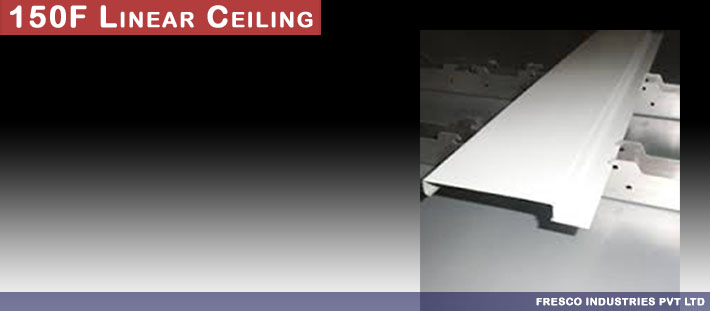

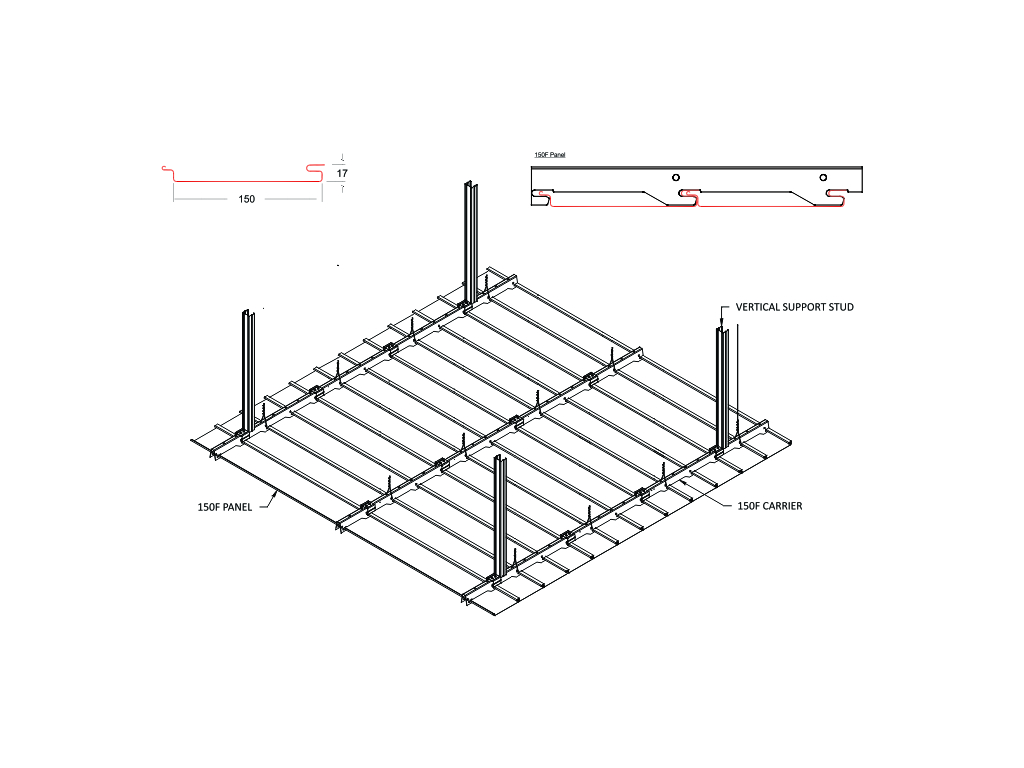

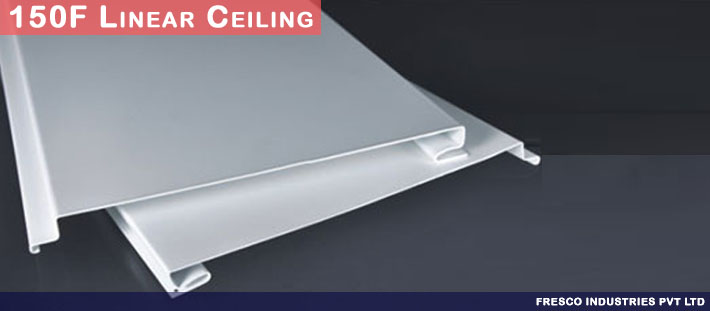

150F linear ceiling is a closed ceiling system consisting of a alluminium or zinc coated steel. Box shapped 150mm wide & 17mm deep panels which can be easily clipped into the concealed carrier.
150F ceiling offer a subtle, long span design for interior & exterior ceilings.
150F ceiling system is ideal for application ranging from exterior metal ceiling to painted facade due to its designed to withstand harsh environments.

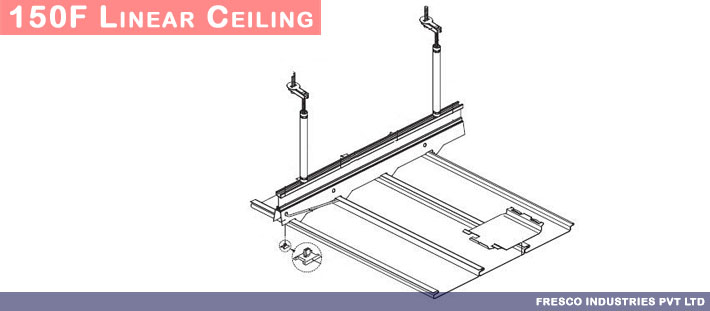

Appropriate to vertical and horizental installation, with a engineering carrier system that provides excellent resistance to wind presseuor and create an even solid surface.
Application :
- airport
- cinema
- exhibition centre
- hospital
- hotel
- office area
- restaurant
- super market
- theater
- kitchen
- laboratory
- show room
Features :
- plain ,monolithic surface
- easy to clean
- Ceiling takes up mimimal void space
- simple access
- services easily integrated
- excellent fire performance
- contains upto 95% recycled content
- colors ,finishes & perforation/acoustic options available
- perforation available for ventilation and/or acoustics
Technical Specification :
- Material 0.45mm-0.7mm GI,
0.55mm-1.5mm hig quality aluminium
- Surface Finishes Precoted, Prepainted coating.
- Production Process Roll forming
- Perforation Standard: D pattern 2.5mm and E pattern 1.8mm
Customized: upon request
- Colours Standard White
Customized: upon request
- Acoustic fleece Standard : acoustic fleece
Customized: other acoustic fleece available upon request
- Sound NRC=0.65-0.8
- Size Length: 600 - 6000mm
