Description :

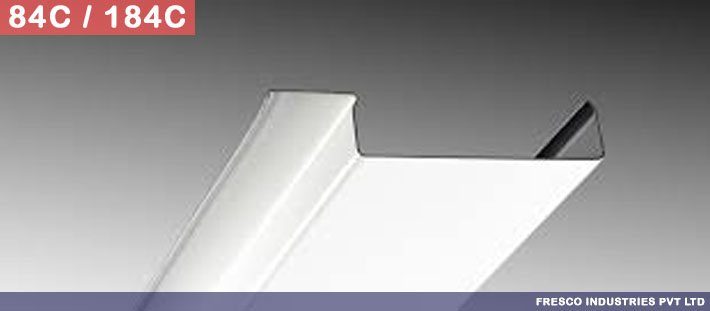

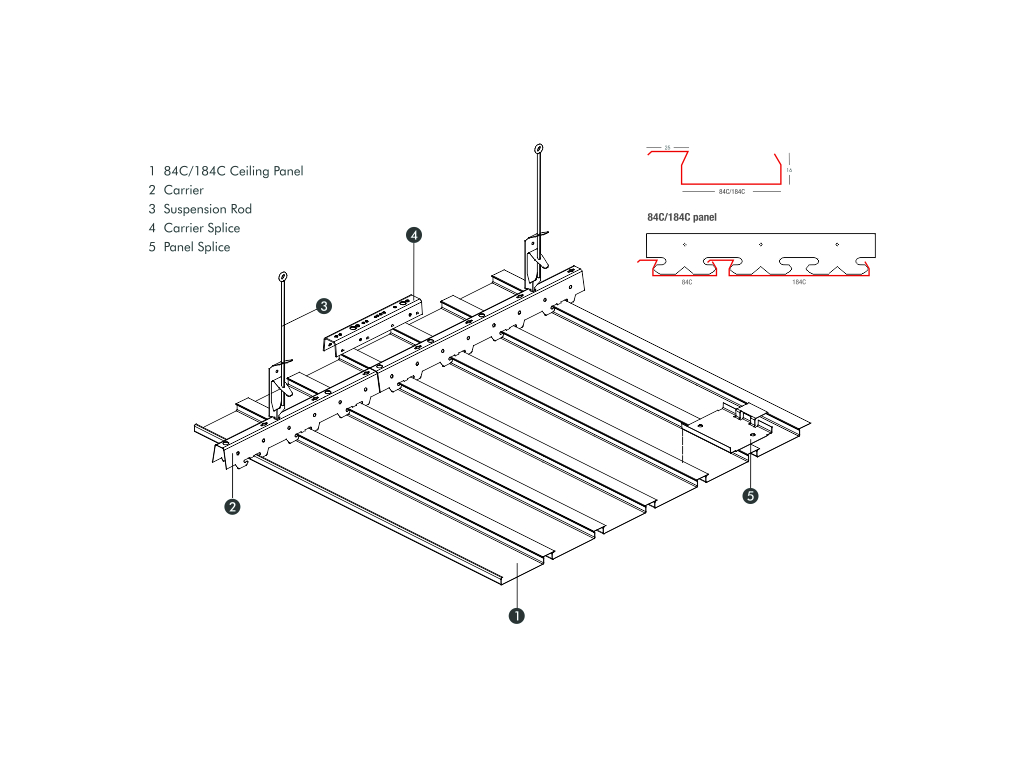

84C/184C closed ceiling system consists of box shapped panels which can be easily clipped on a carrier. The 84/184mm wide panel feature 24mm wide flange that closes off 16mm joint between panels. 84C/184C can provide more & unique effect for the interior decoration for modern building. Absence of dust retention & ease of cleaning make these panel ideal for hospitals , kitchen , food preparation areas and anywhere where hygiene is important.


Application :


  • airport
  • cinema
  • exhibition centre
  • hospital
  • hotel
  • office area
  • restaurant
  • super market
  • theater
  • kitchen
  • laboratory
  • show room

Features :


  • plain ,monolithic surface
  • easy to clean
  • Ceiling takes up mimimal void space
  • simple access
  • services easily integrated
  • excellent fire performance
  • contains upto 95% recycled content
  • demountable panels ,allowing full acess to services & equipment in plenum
  • colors ,finishes & perforation/acoustic options available

Technical Specification :


  • Material 0.45mm-0.7mm GI,
                    0.55mm-1.5mm hig quality aluminium
  • Surface Finishes Precoted, Prepainted coating.
  • Production Process Roll forming
  • Perforation Standard: D pattern 2.5mm and E pattern 1.8mm
                         Customized: upon request
  • Colours Standard White
                   Customized: upon request
  • Acoustic fleece Standard : acoustic fleece
                               Customized: other acoustic fleece available upon request
  • Sound NRC=0.65-0.8
  • Size Length: 600 - 6000mm
