Description :

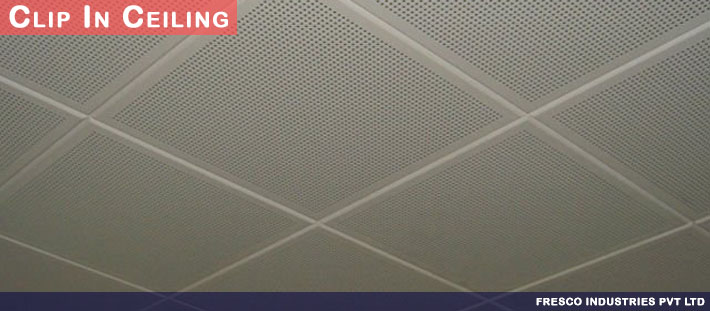

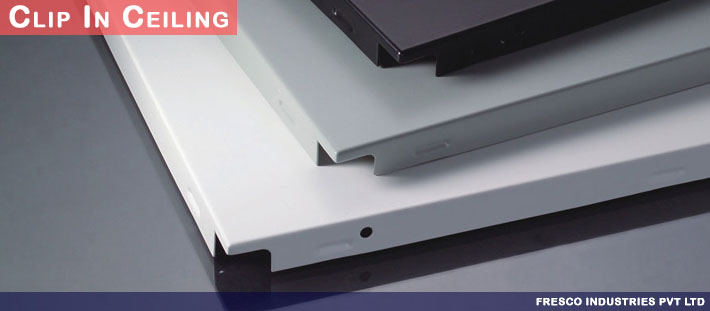

The clip in ceiling system is probably the most widely used metal tile ceiling system.The tiles manufactured to fine press tool tolerance, are clipped into a concealed Tee grid by special 'PIP & STOP' registers which are pressed into the side flanges of the tiles during manufacture.The robust grid system is easily installed and tiles can be removed & replaced for access to services. Modular or circular light fitting & grilles can be integrated with in clip in system. The perforated tile are available with non woven acoustic black tissue inside that can expect good sound absorption. Alternatively , black tissue can be specified to reduce air movement and dust penetrarion through perforation. A number of acoustic requirement can be met with the introduction of a acoustic inlay in the back of perforation tile.


Application :


  • airport
  • cinema
  • exhibition centre
  • hospital
  • hotel
  • office area
  • restaurant
  • super market
  • theater
  • kitchen
  • laboratory
  • show room

Features :


  • plain ,monolithic surface
  • easy to clean
  • Ceiling takes up mimimal void space
  • simple access
  • services easily integrated
  • excellent fire performance
  • contains upto 95% recycled content
  • colors ,finishes & perforation/acoustic options available

Technical Specification :


  • Material0.5mm-0.6mm, high quality galvenized steel
    0.7-1.5mm hig quality aluminium
  • Surface FinishesPrecoted, Electrostatic Polyester powder coating, PVDF coating.
  • Production ProcessMould forming

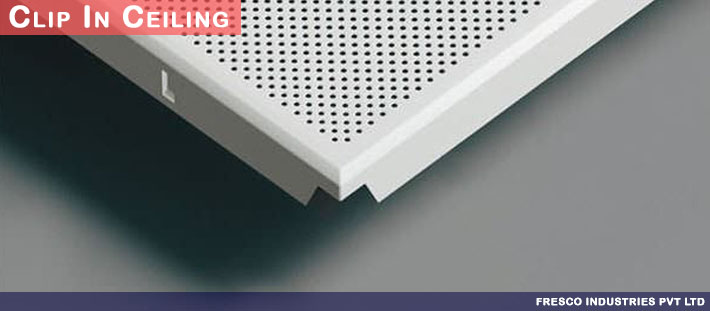

  • PerforationStandard: D pattern 2.5mm and E pattern 1.8mm
    Customized: upon request
  • Colours Standard White
    Customized: upon request
  • Acoustic fleece Standard : acoustic fleece
    Customized: other acoustic fleece available upon request
  • Sound NRC=0.65-0.8
  • Size 600 * 600mm
    600 *1200mm
    300 * 600mm
    300 * 300mm
    Customized Upon request
