Description :

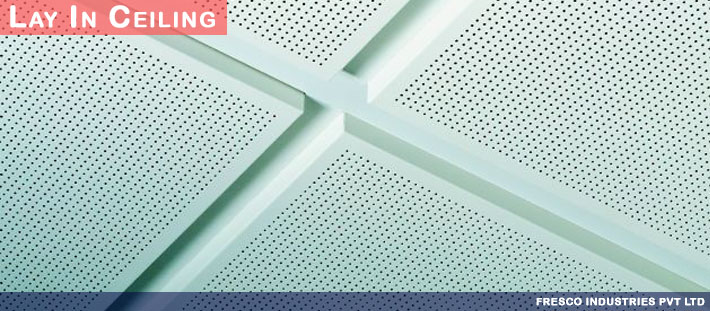

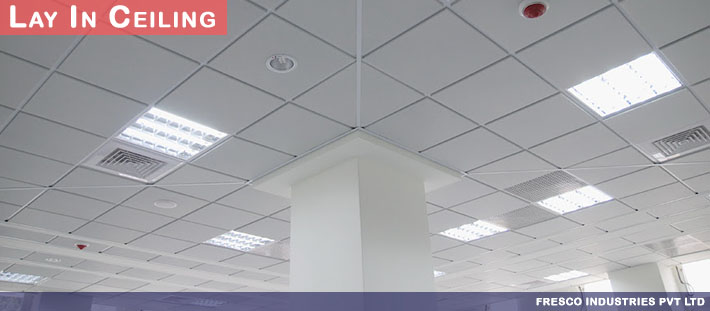

The simplicity of lay in ceiling systems is the key to their popularity.The panels are easily lifted out of the grid by hand, allowing full acess to the ceiling void.

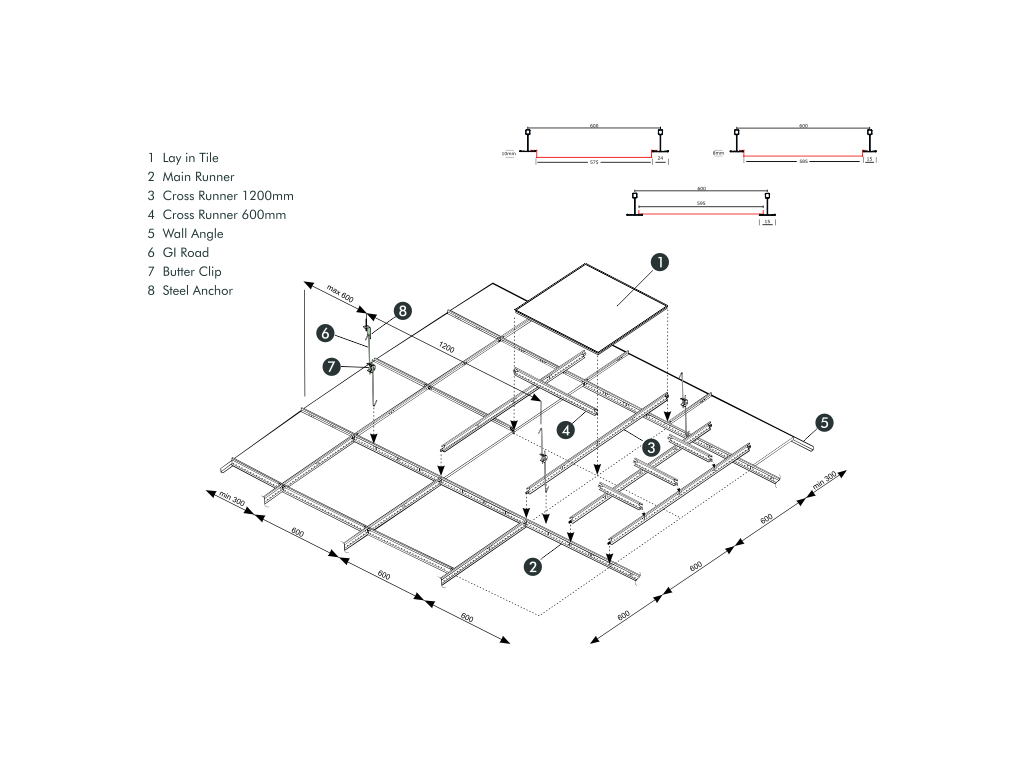

Design primerely for use with conventional 24mm wide Tee - grid.Installing on 24mm Tee grid is vector ceiling panel which give a semi concealed appearance.
There is also a 15mm wide Tee grid system available that give a microlook appearance.
The perforated tile are available with non woven acoustic black tissue inside that can expect good sound absorption.
Alternatively , black tissue can be specified to reduce air movement and dust penetrarion through perforation.
A number of acoustic requirement can be met with the introduction of a acoustic inlay in the back of perforation tile.
Application :
- airport
- cinema
- exhibition centre
- hospital
- hotel
- office area
- restaurant
- super market
- theater
Features :
- stability of interlocking expose grid
- easy lift up acess to void
- contain upto 95% recycled content
- clean , modular ceiling appearance
- durable , washable , smooth polyster coating
- lights and grills easily integrated
- sound absorbtion
- NRC of 0.95 achieved with standard insulation
- colors ,finishes & perforation/acoustic options available
Technical Specification :

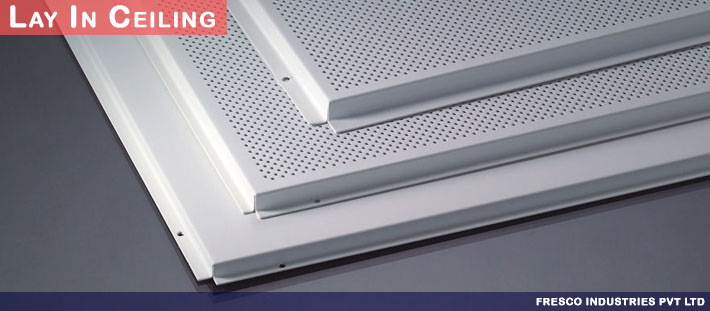

- Material0.5mm-0.7mm, high quality galvenized steel
0.7-1.5mm hig quality aluminium
- Surface FinishesPrecoted, Electrostatic Polyester powder coating, PVDF coating.
- Production ProcessMould forming
- PerforationStandard: D pattern 2.5mm and E pattern 1.8mm
Customized: upon request
- Colours Standard White
Customized: upon request
- Acoustic fleece Standard : acoustic fleece
Customized: other acoustic fleece available upon request
- Sound NRC=0.65-0.8
- Size 600 * 600mm
600 *1200mm
300 * 600mm
300 * 300mm
Customized Upon request
